Industrial Door Frame Metal Detector

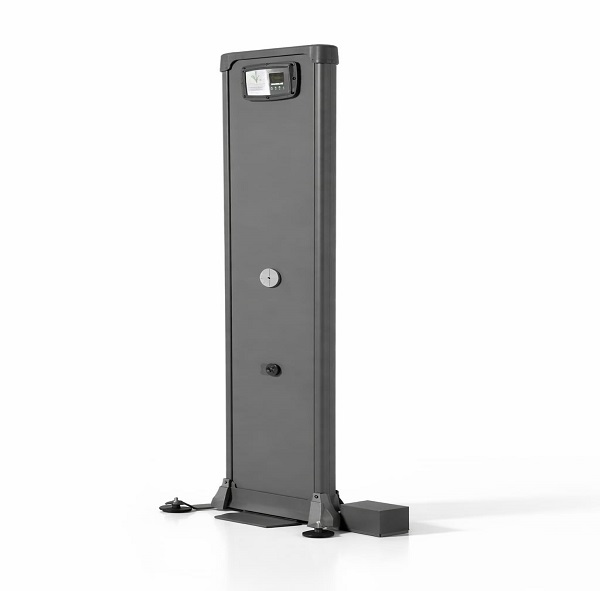

TECHNOSPACIO MULTI-ZONE-Single Door
Overview

The Technospacio Multi-Zone Single Door Metal Detector is a lightweight, IP54-rated, multi-zone detector designed for high-traffic security applications. It features advanced infrared technology, adjustable sensitivity, and robust waterproof ABS construction for reliable operation in various environments.

6-Zone Detection
Adjustable Sensitivity
High Throughput
Precise Metal Detection
Safe for Humans
Network Integration
×
Zones

0

Zones

Frequency

0

Levels

Weight

0

Kg

Working Principle Electromagnetic
Material ABS (Acrylonitrile Butadiene Styrene)
Frequency 0–99 Levels
External Size 2203 × 580 × 117 mm
Net Weight 19 kg
Gross Weight 24 kg
Detection Distance ≤ 30 cm (Person to Door)
Working Humidity Up to 99% (Non-condensing)
Working Temperature -20°C to +65°C
Input Voltage AC 100–240V, 50/60Hz
Product Color Matte Black
IP Rating IP54
Sensitivity 0–400 Adjustable
Alarm Volume 0–50 Levels
Alarm Time 0–3 sec
Alarm Tones 15 Selectable
Metal Detection 2mm (T) × 50mm (L) × 20mm (W)
Detection Range Dual Side, up to 600 mm
Transport Hubs

Airports, railway stations and bus terminals

Government Sites

Government buildings and embassies

Educational Campuses

Schools, colleges and universities

Industrial Facilities

Factories and manufacturing sites

Event Venues

Stadiums and public gathering areas

Commercial Spaces

Hotels, malls and office complexes

6-Zone Detection

overlapping zones with LED indicators for precise metal location.

Full Coverage

Multiple emitters and receivers ensure detection without blind spots.

Adjustable Sensitivity

Individual zone sensitivity filters coins, keys and small objects.

Traffic Statistics

Counts people flow and alarm events for monitoring.

Parallel Operation

Multiple gates work side by side for high-traffic areas.

Safe & Secure

Safe for pacemakers, password protected and easy to install.

×
