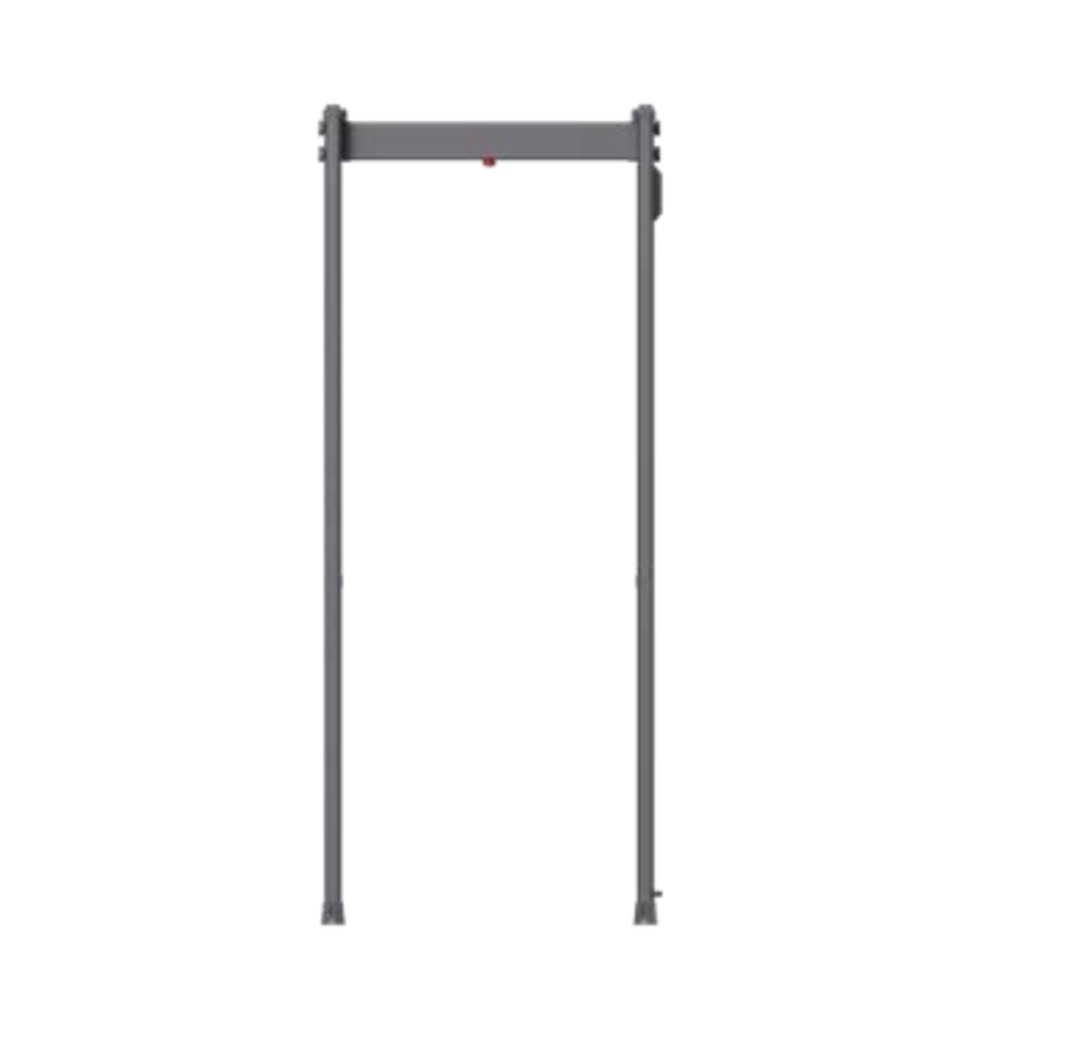

Industrial Door Frame Metal Detector

TECHNOSPACIO DFMD-6ZONE
Overview

The Technospacio DFMD-6ZONE is a walk-through metal detector with advanced features such as adjustable sensitivity for each detection zone, remote upgrade and control, and intelligent standby operation. It is designed for high throughput and reliable security screening in various environments.

6-Zone Detection
Adjustable Sensitivity
High Throughput
Precise Metal Detection
Safe for Humans
Network Integration
×
Zones

0

Zones

Sensitivity

0

Levels

Passage

0

mm

Model TS-D-6ZONE
Detection Zones 6 Zones
Sensitivity 1–400 Levels per zone
Security Level 100 Levels
Vertical Size 2216 × 429 × 854 mm
Passage Size 1940 × 700 mm
Working Voltage AC 90–240V, 50/60Hz
Power Consumption 20W
Working Frequency 1–50 bands
Operating Temperature -20°C to 65°C
Main Unit Weight 54 kg
Shipping Weight 62 kg
Main Box Packing 725 × 200 × 305 mm
Door Panel Packing 2245 × 510 × 200 mm
Transport Hubs

Airports, railway stations and bus terminals

Government Sites

Government buildings and embassies

Educational Campuses

Schools, colleges and universities

Industrial Facilities

Factories and manufacturing sites

Event Venues

Stadiums and public gathering areas

Commercial Spaces

Hotels, malls and office complexes

6-Zone Detection

Six overlapping zones with LED indicators for precise metal location.

Full Coverage

Multiple emitters and receivers ensure detection without blind spots.

Adjustable Sensitivity

Individual zone sensitivity filters coins, keys and small objects.

Traffic Statistics

Counts people flow and alarm events for monitoring.

Parallel Operation

Multiple gates work side by side for high-traffic areas.

Safe & Secure

Safe for pacemakers, password protected and easy to install.

×
