TS-S-400
Introduction

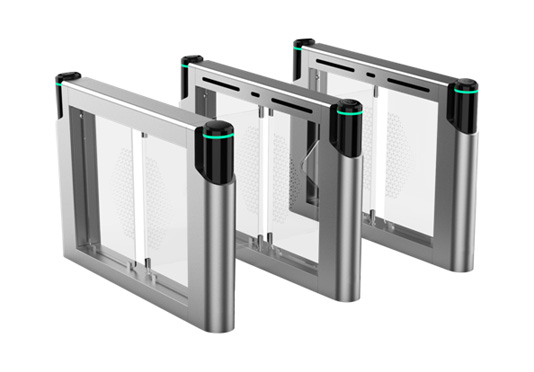

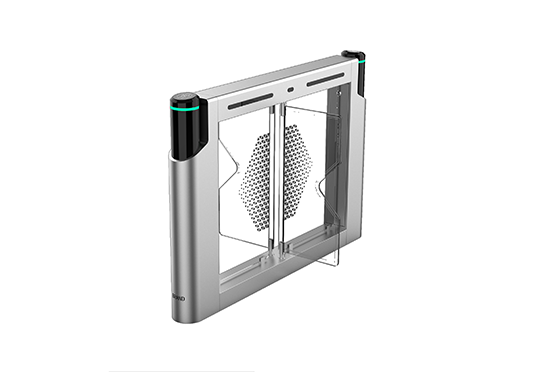

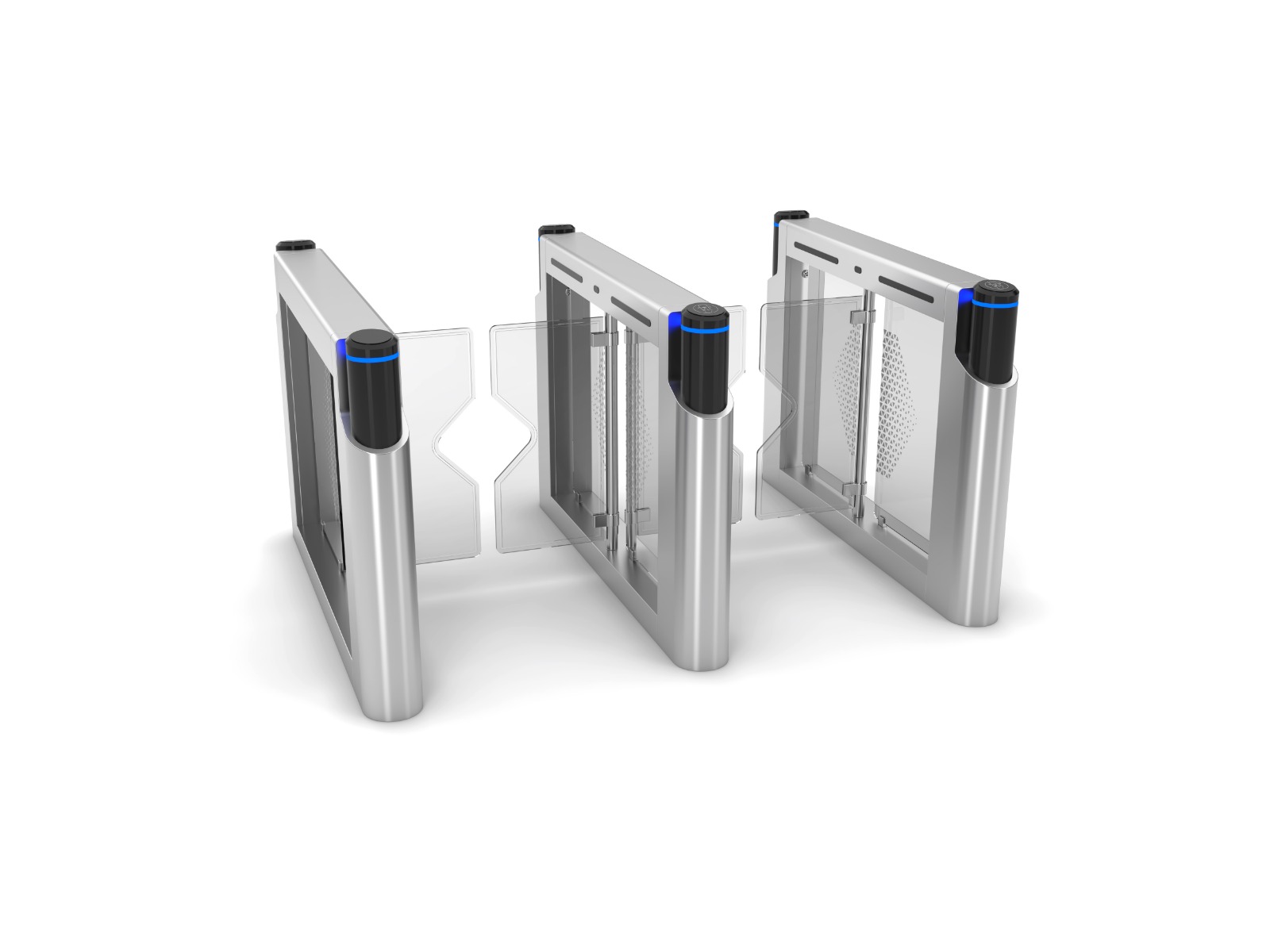

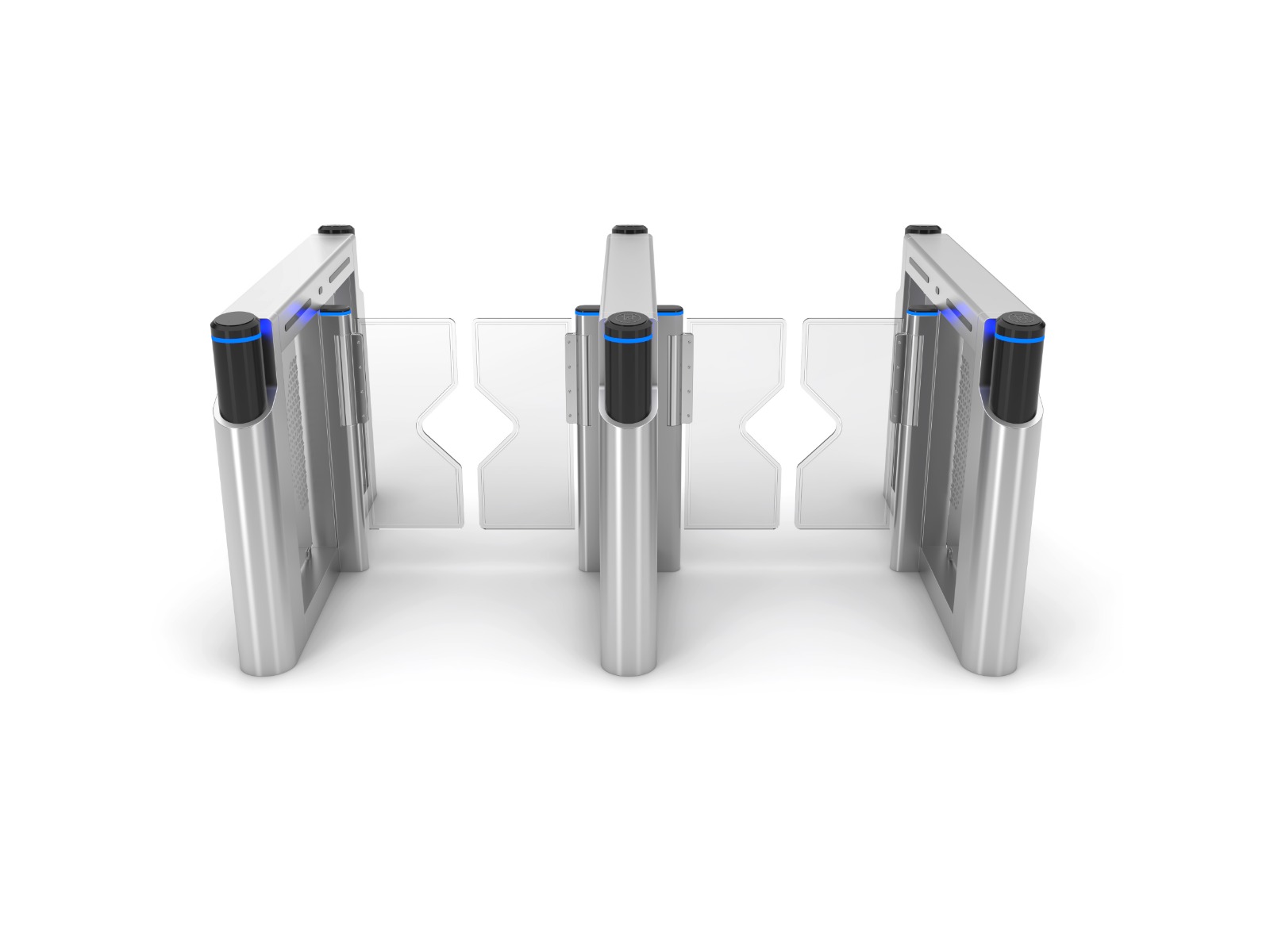

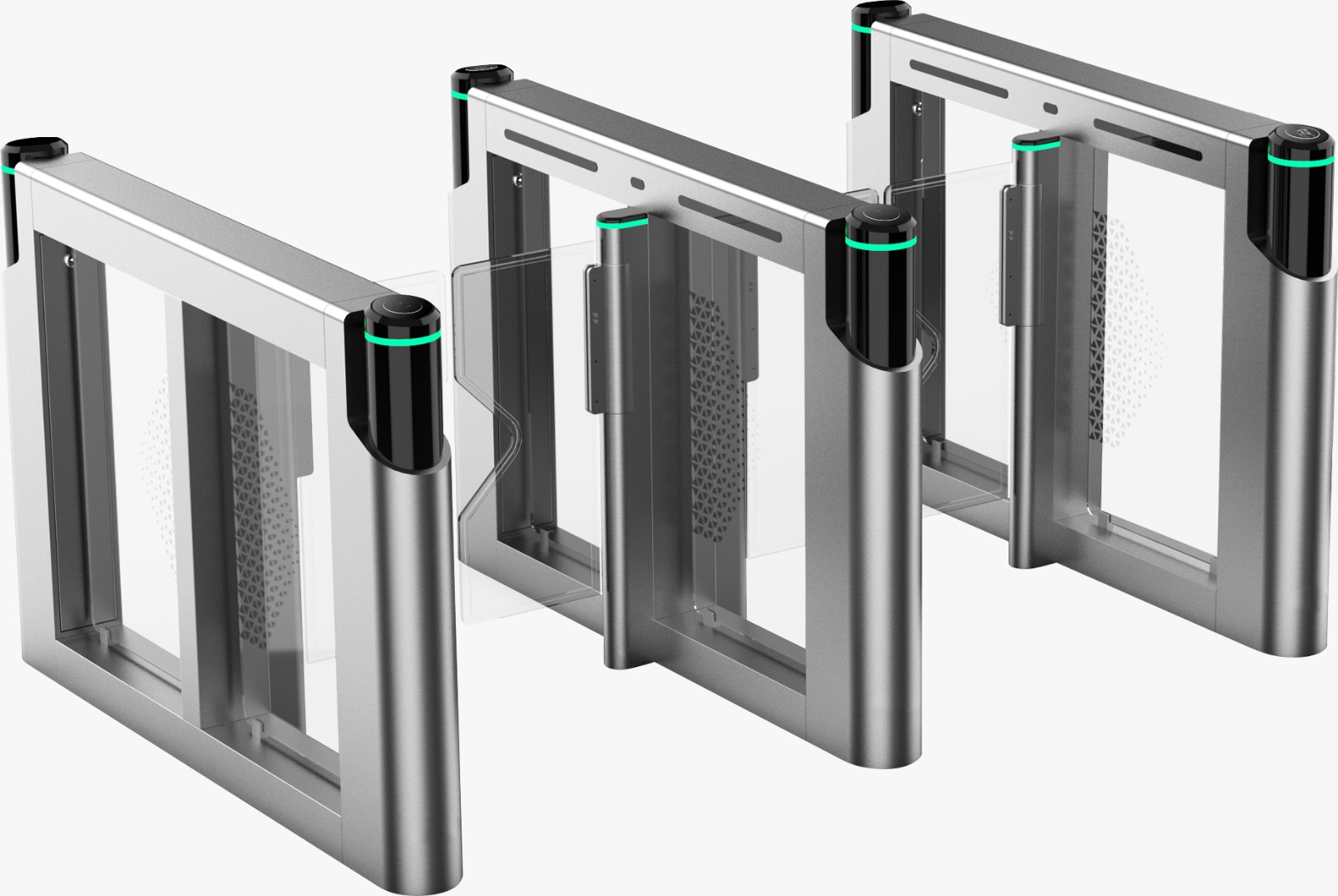

The TS-T-400 Swing gates are stylish waist-high security speed gates that operate on the swing open principle with glass (or plastic) panels acting as the barrier gate. Depending on which side of the Technospacio Swing Lane the person approaches, the gate when authorized, will swing open in the opposing direction allowing them passage through the controlled lane. The Technospacio Swing Lane has the ability to embed most manufacturers access control readers beneath its top glass cover, and with the intuitive LED user indication and guidance, this security speed gate encompasses safety with high traffic flow capacity. The Technospacio Swing Lane is offered with different dimensions of swinging gates, which enables lane widths of up to 1000mm.
| Technical Specification |
|---|
| Brand name | TECHNOSPACIO |
| Motor type | DC brushless motor |
| Flow rate | 40-50people/minute |
| Passage width(mm) | ≤1000 |
| Rated Power | 50W |
| Cabint material | SUS 304;1.5mm top lid/1.2mm side |
| Infared sensor | 8 pairs |
| Input/Output signal | dry contact/relay signal |
| Dimension | 1508*160*1019mm |
| Net Weight | 55kgs |
| Gross weight | 57KG |
| IPF | IP54 |
| Operating Temperature | -10 °C- 60 °C |
| Operating Humidity | 5%-85% |
| Indoor/Outdoor covered | Yes |
| Voice prompt | Yes |
SWIPE CARD
- Access with authorized card and payment cards.
- Swipe to open the way.
IRIS RECOGNITION
- Use the authorized eyes of Iris Recognition to pass through the entry gates.
FINGERPRINT RECOGNITION
- Access with authorized fingerprint authentication.
COIN/TICKET
- Use disposable coins to coin through to enter.
FACE RECOGNITION
- Use authorized face recognition to enter.
PALM VEIN RECOGNITION
- Use authorized palm vein recognition to pass into.
QR CODE
- Scan in with authorization QR code and barcode.
MANUAL OPERATION
- Manual use of wired and wireless to open gates for entry.
Safety and User-Orientated Design
- ➤ The arm designed for emergency purpose.
- ➤ No exposed screws, safer for the user.
- ➤ Smooth operation designed for mass transit application.
- ➤ The pictogram on the device indicating access permission and direction of movement.
- ➤ Special designed case shape, user-friendly for passenger to punch card or finger.
Reliability
- ➤ Alloy steel flap hub prevents mechanical wear.
- ➤ Casework and flap arms manufactured in SUS 304 stainless steel.
- ➤ Electromagnets for lock are used only when being activated. They are in standby mode when the device is idle.
- ➤ Technospacio compact mechanism ensures the long life of the lubricating oil inside.
- ➤ High quality electrical components.
Easy Integration
- ➤ Flexible reader installation plate. Customers can easily integrate with third party readers.
- ➤ Standard electrical interface for third party device.
- ➤ By using compact mechanism, the turnstile has more space inside for integration.
- ➤ Technospacio provides integration service in factory, with board and peripherals installed, ensuring compliance of the system. When the turnstile is delivered, just plug it in and do the setting. Save the cost of installation.
