Industrial Flap Barrier Gate

TECHNOSPACIO FLAP BARRIER-250
Overview

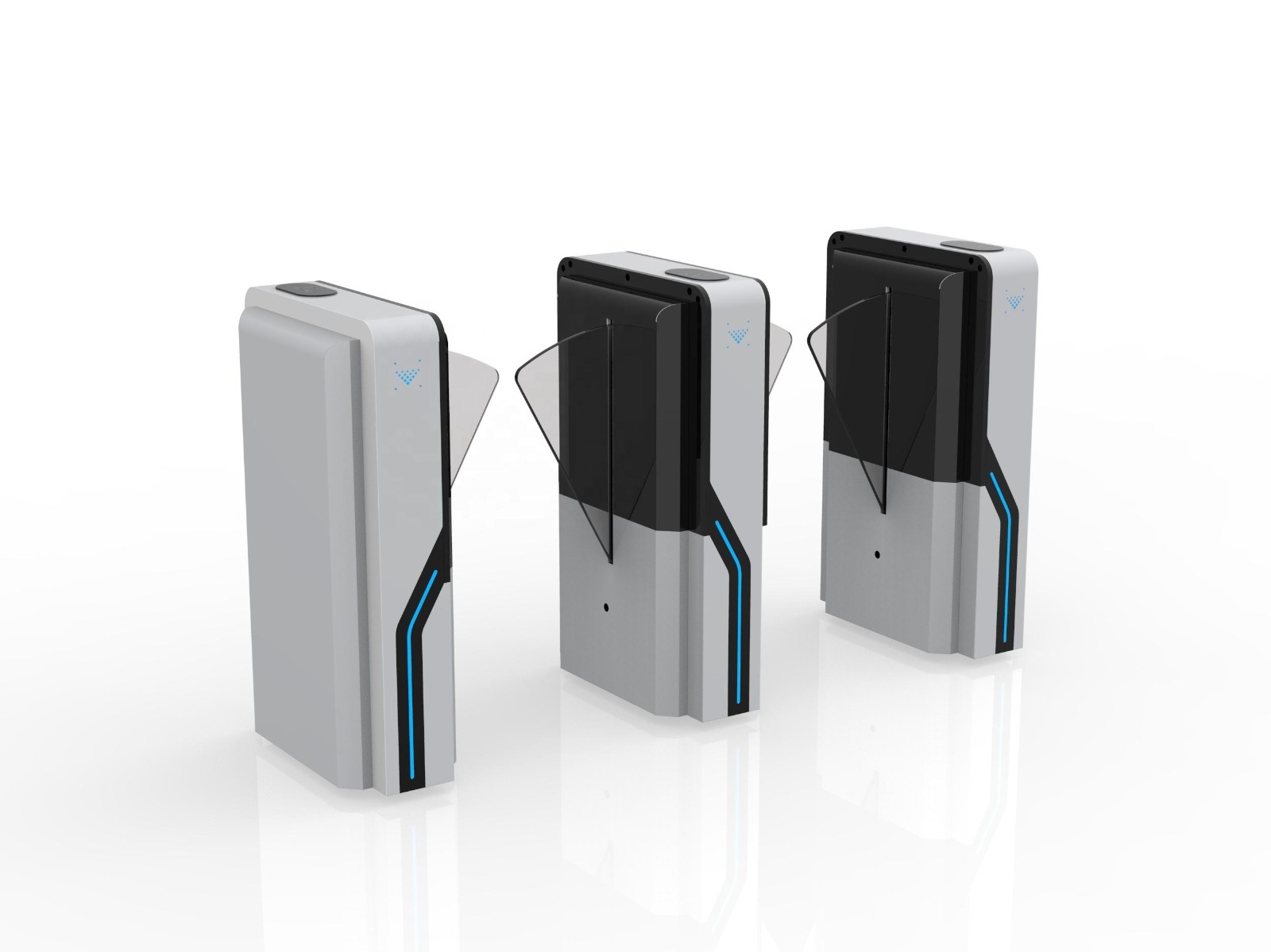

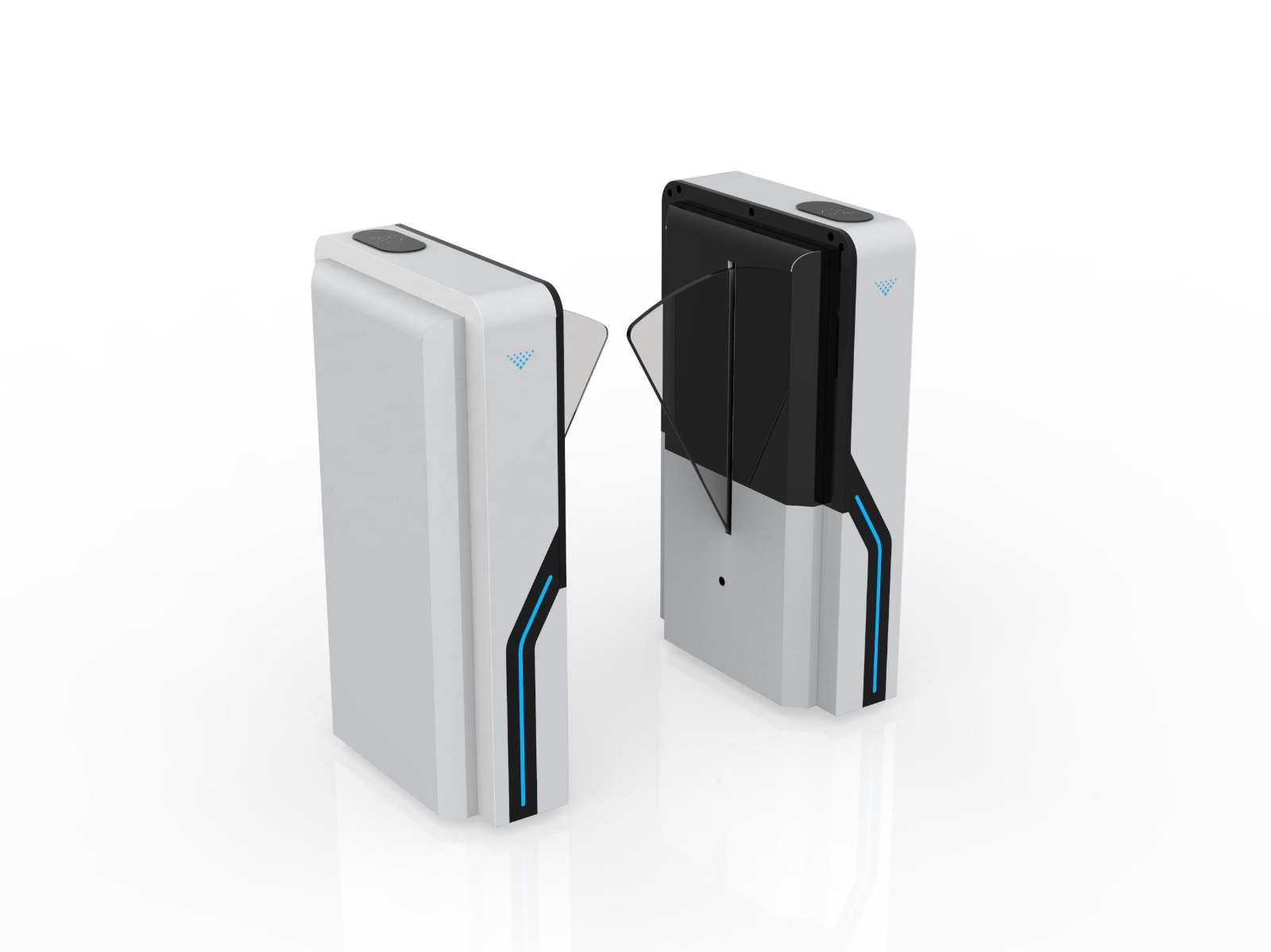

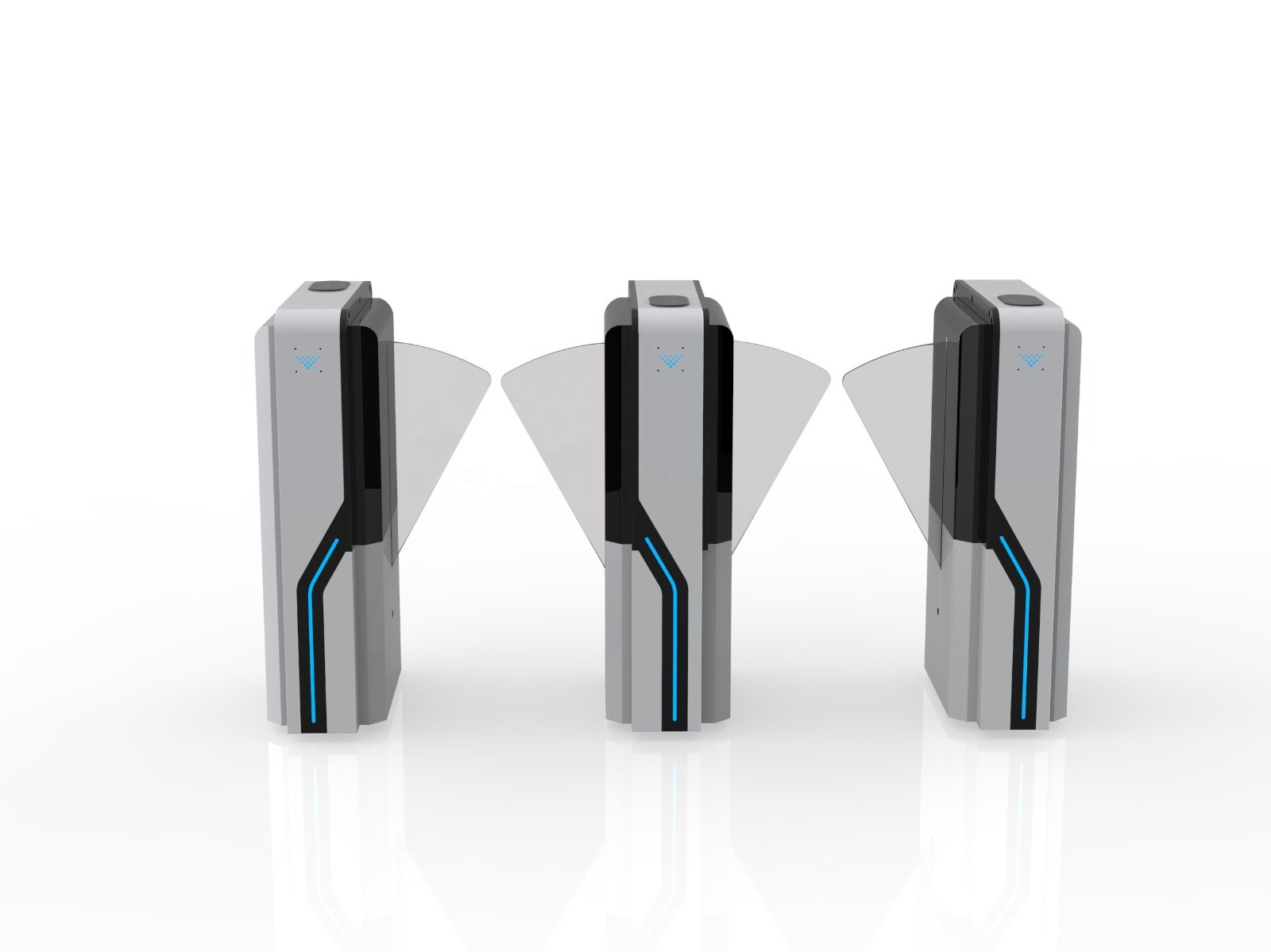

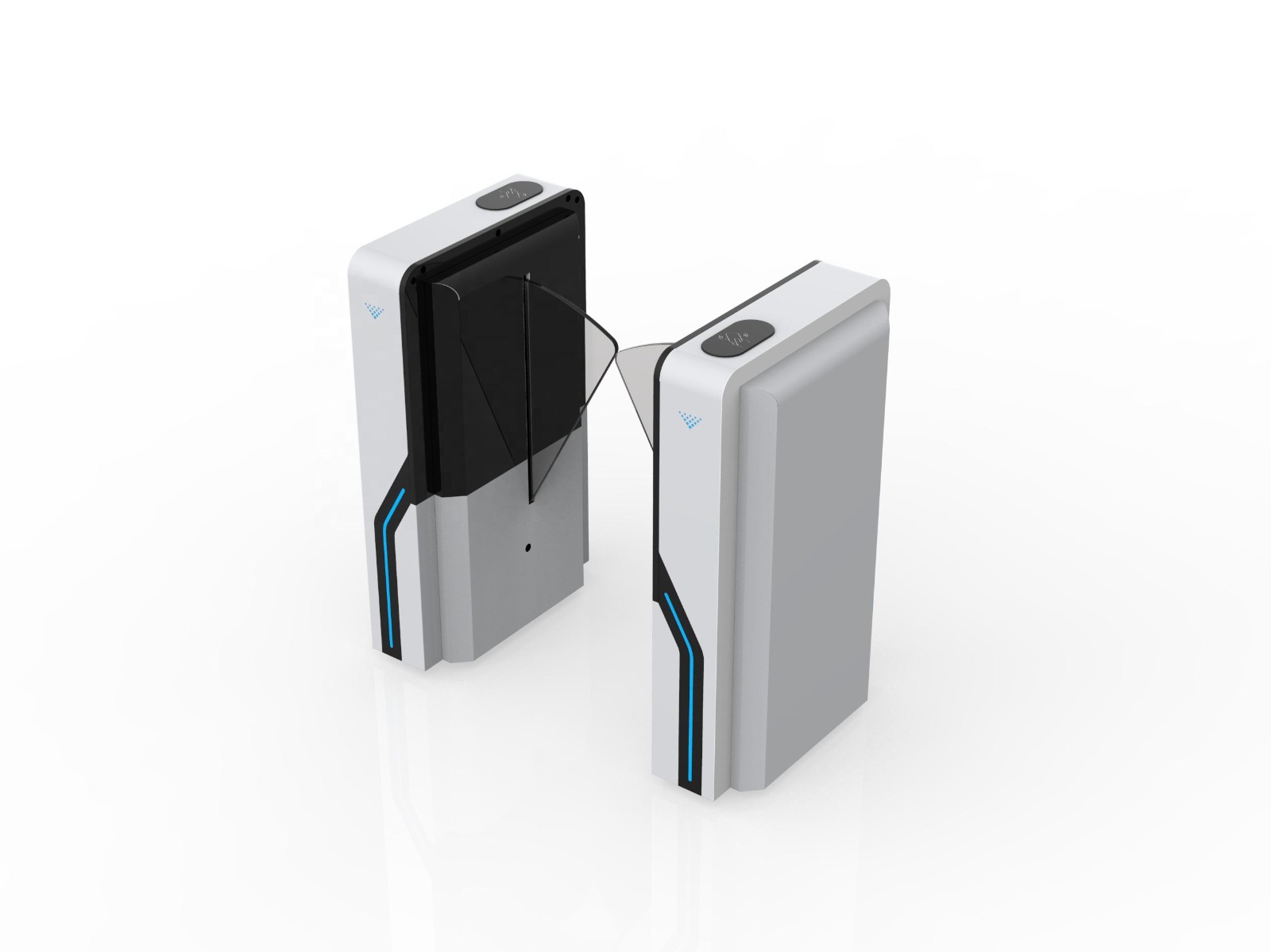

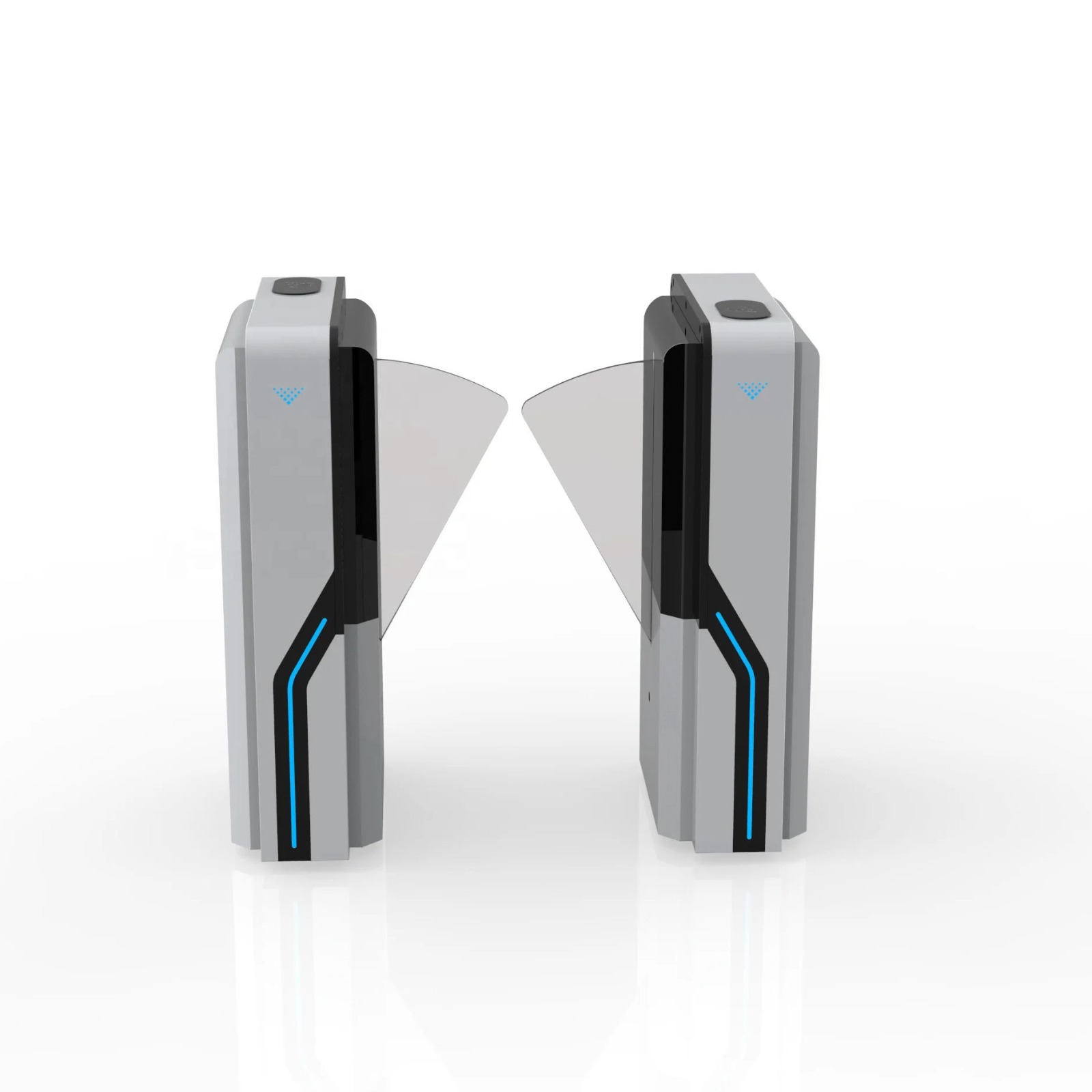

The Technospacio Flap Turnstile-250 series are robust products functioning to provide pedestrian access control in areas requiring moderate level of security. With its compact case design, provides a perfect solution for tight installation areas. Encoder and PLC controlled obstacle movement is provided by brushless DC motor, and enhanced with security features such as anti-tail-gating and anti-pass-back, with five pairs of optical sensors embedded in the turnstile case, which in total ensures one of the highest reliability available in market and a remarkably long life even in case of intensive usages.

Brushless Motor
40W Power
0.2–0.5s Opening
45 People/min

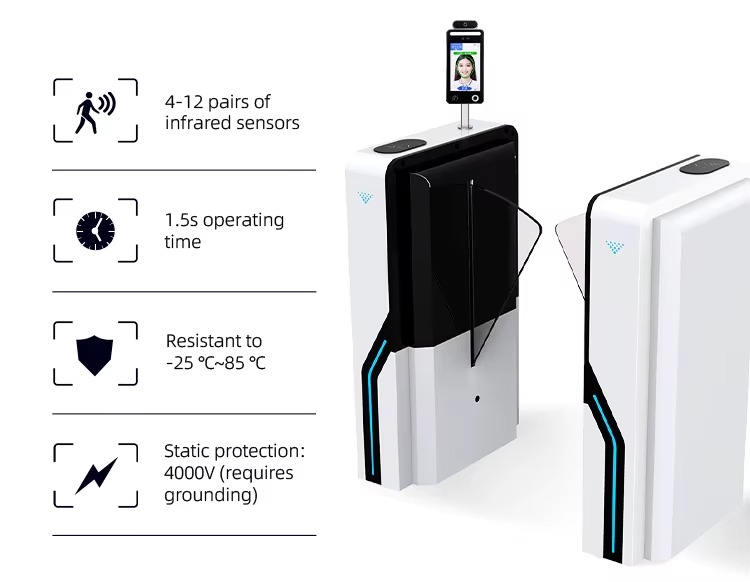

Infrared Sensors
IP54 Protection
Voice Prompt
×
Throughput

0

persons/min

Passage Width

0

mm max

Protection

IP54

indoor / covered

Brand Name TECHNOSPACIO
Model Name TS-F-250
Dimensions 600 × 280 × 980 mm
Cabinet Material 304 Stainless Steel
Material Thickness Top Cover: 1.5 mm + Body: 1.2 mm
Passage Width ≤ 550 mm
Passage Indicator Soft LED Indicator Light on Top + Door RGB 3-Color Welcome Lamp
Operating Environment Indoor / Outdoor (Covered)
Power Rate 40 W
Power Supply AC 110–220V, 50/60Hz
IP Rating IP54
Drive Mechanism DC Brushless Motor
Traffic Direction Configurable for Unidirectional or Bidirectional Flow
Control Signal Relay Contact Signal (Dry Contact)
Operating Temperature -40°C to +70°C
Passage Speed 35–45 Persons/Minute
MCBF 5 Million Cycles
Swipe Card

Authorized card access for entry

Iris Recognition

High-security iris authentication

Industrial Gates

Factory & warehouse control

Fingerprint

Biometric fingerprint entry

Face Recognition

AI face authentication entry

Palm Vein

Palm vein recognition access

QR Code

QR / barcode access control

Coin / Ticket

Token or ticket entry systems

Manual Control

Button, wired or remote opening

Low Power Lock

Electromagnet activates only when needed

Long Life Mechanism

Lubricated compact mechanism ensures long life

Anti-Tailgating

Allows one person per authorization

Safe Design

No exposed screws, user-friendly structure

Easy Integration

Supports RFID, biometric, QR and third-party systems

×
