Industrial Boom Barrier Gate

TECHNOSPACIO-BOOMBARRIER-1500
Overview

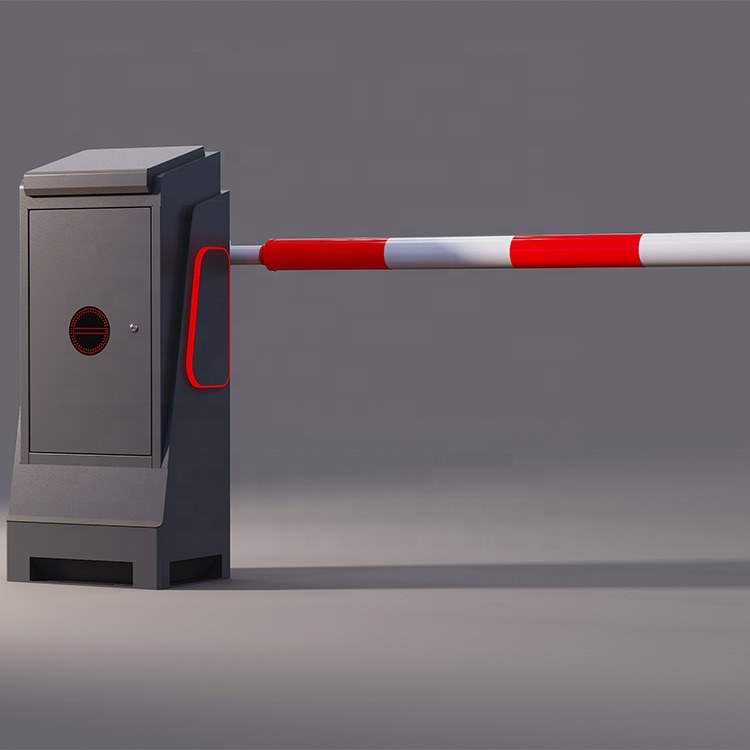

The Technospacio TS-B-1500 Boom Barrier is engineered for high-performance and reliable access control. Powered by an advanced AC servo motor, it delivers adjustable opening speeds ranging from 0.2 to 8 seconds. Its robust design ensures stable operation with minimal mechanical wear and reduced maintenance. Built with high-quality stainless steel and IP56 protection, it performs efficiently in extreme temperatures and outdoor conditions. Ideal for high-traffic environments, it offers precision control, durability, and smart functionality in a modern design.

24V Motor
2 Sec OpenTime
Fast Operation
3000 r/min
100% Duty
IP56 Rated
Servo Motor
×
Opening Speed

0.2

sec

Lifespan

0

Million Cycles

Warranty

5

years

Brand Technospacio
Material Stainless Steel
Reflective Grade High-intensity prismatic
Water Type Water fillable / Non-water fillable
Light With Light
Protection Rating IP56
Model Number TS-B-1500
Working Temperature -35℃ to 85℃
Open / Close Speed 0.2–6 sec, 0.3–6 sec, 0.5–8 sec
Rated Power 750W
Driving Method AC Servo Motor
Remote Control Distance ≤ 100m (open, sunny weather)
Torque 35N.M, 150rpm
Max Boom Length 6m
Apartment Entry

Vehicle access control

Industrial Gates

Factory & warehouse control

Parking Systems

Mall & office parking

Toll & Security

RFID & LPR integration

Download Datasheet

Download PDF
100% Duty Cycle

Designed for continuous operation without overheating

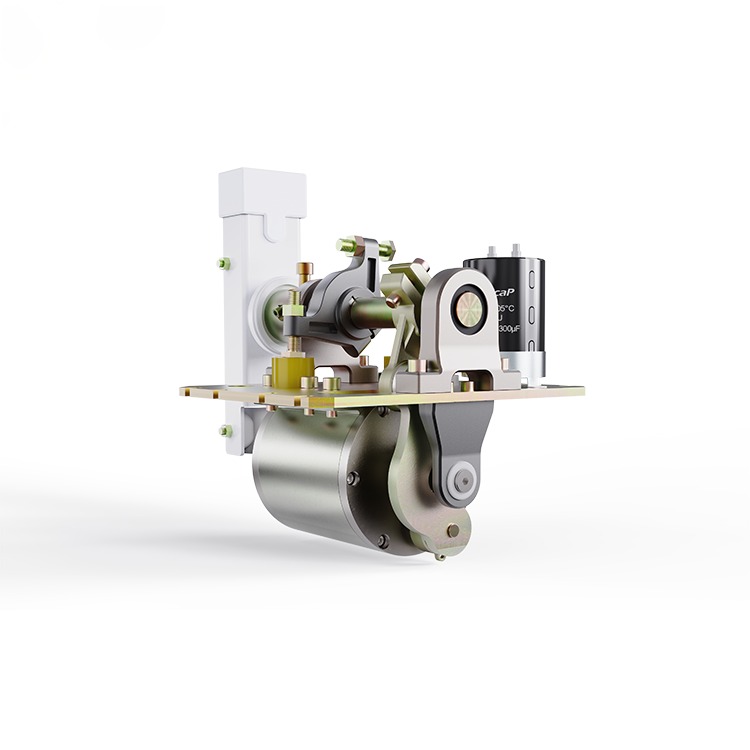

Servo Motor

Energy-efficient 24V motor with planetary gearbox

Heavy Cabinet

2mm rust-resistant iron housing

No Limit Switch

End-position detection without mechanical switches

Adjustable Speed

Variable opening and closing speed control

Dual Springs

Enhanced durability and balanced movement

Left/Right Config

Bi-directional mainshaft installation

×
