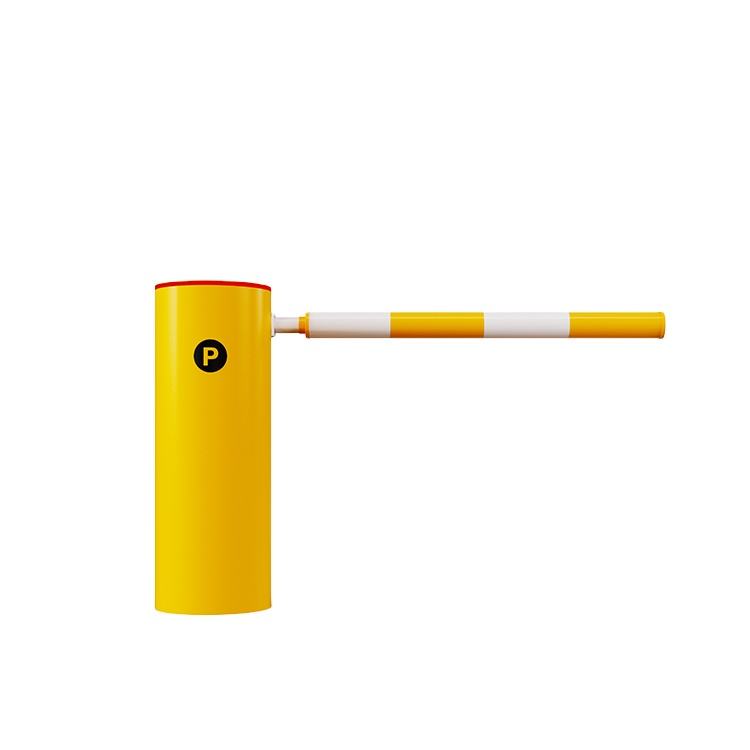

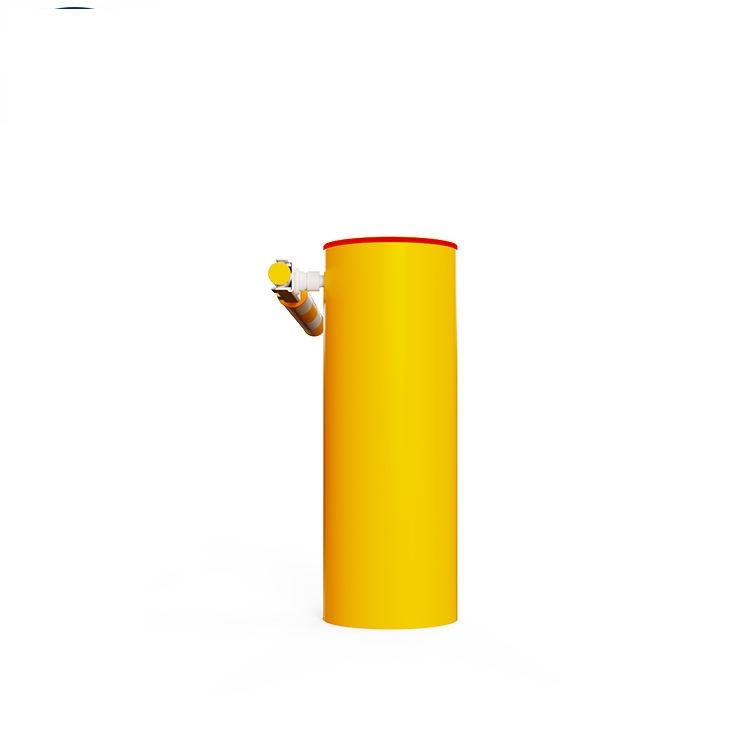

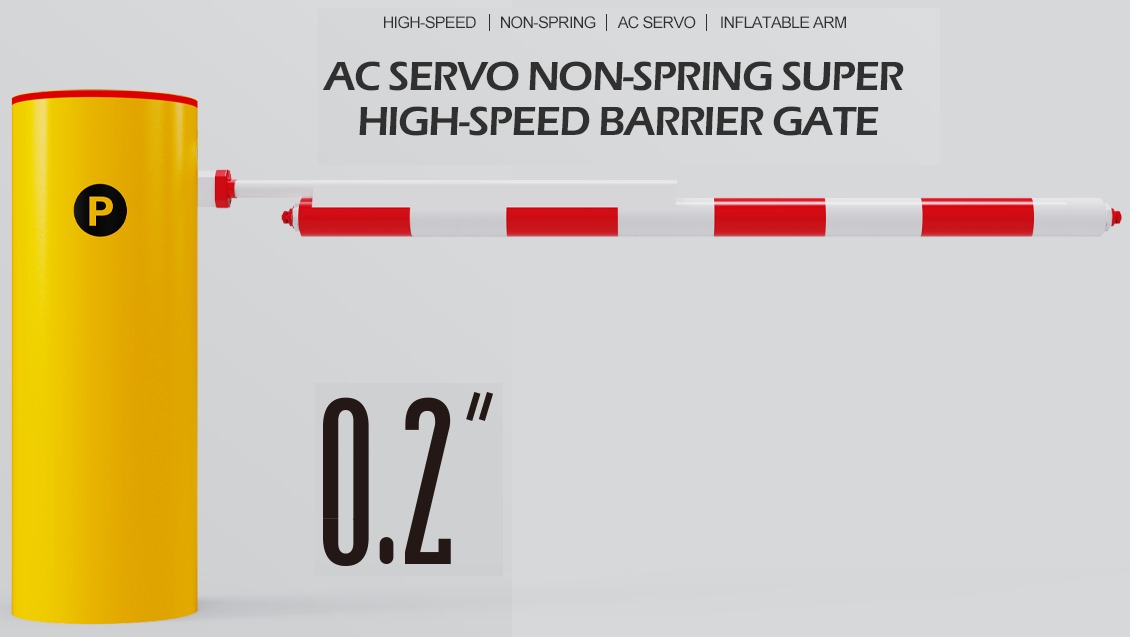

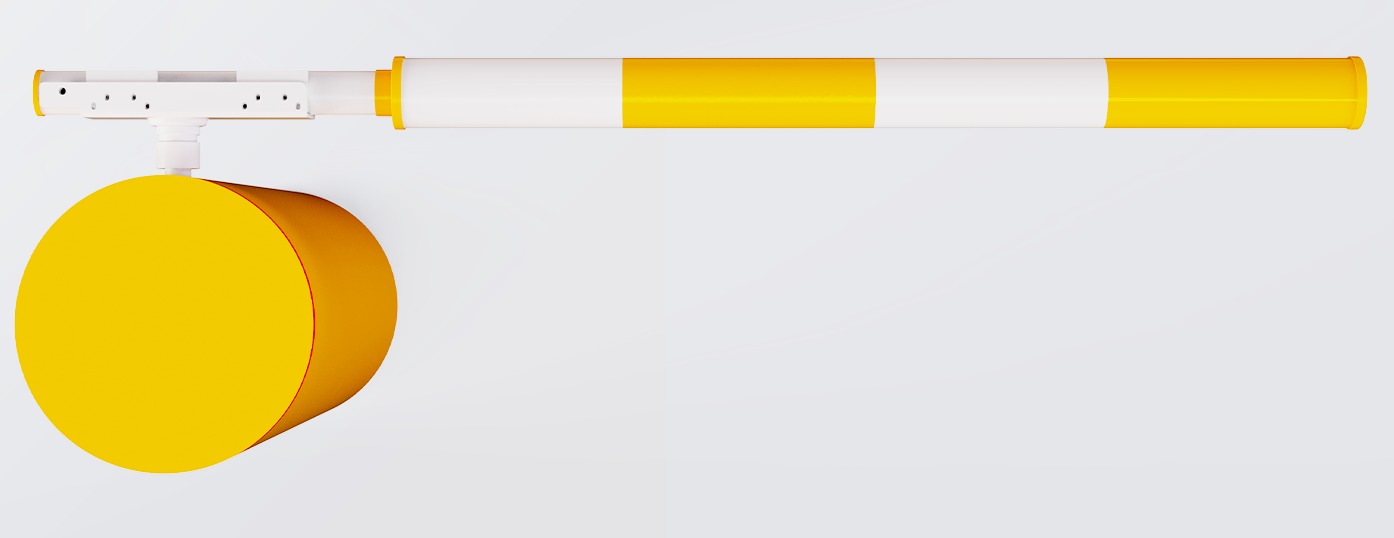

Technospacio Boom Barrier-850

Overview

The Technospacio-Boom Barrier-850 Series are engineered for ultra-fast and reliable access control. Powered by a high-performance servo motor, it delivers rapid opening speeds as low as 0.2 seconds. Its non-spring design ensures stable operation with reduced mechanical wear and maintenance. Built for durability, it operates efficiently across extreme temperatures and demanding environments. Ideal for high-traffic areas, it combines speed, precision, and intelligent control in a compact design.

24V Motor

2 Sec OpenTime

Fast Operation

3000 r/min

100% Duty

IP55 Rated

Servo Motor

Get Quote Download Datasheet

Opening Speed

0.2

sec

Lifespan

0

Million Cycles

Warranty

5

years

     Brand Name
    Technospacio


     Working Temperature
    -30°C ~ +70°C


Power Supply 24V / 110V / 220VAC, 50/60Hz

Open / Close Speed 0.2 – 3 sec (Adjustable)

     Rated Power
    750W


     Driving Method
    DC Servo Motor


Humidity ≤ 90%

Remote Control Distance ≤ 100m (Open, Sunny Weather)

     Protection Grade
    IP55


     Motor No-load Speed
    3000 r/min


Max Boom Length 3m

Boom Type Cylindrical

     Opening Direction
    Left / Right Adjustable


     Lifespan
    30 Million Cycles


Apartment Entry

Vehicle access control

Industrial Gates

Factory & warehouse control

Parking Systems

Mall & office parking

Toll & Security

RFID & LPR integration

Download Datasheet

Download PDF

100% Duty Cycle

Designed for continuous operation without overheating

Brushless Motor

Energy-efficient 24V motor with planetary gearbox

Heavy Cabinet

2mm rust-resistant iron housing

No Limit Switch

End-position detection without mechanical switches

Adjustable Speed

Variable opening and closing speed control

Dual Springs

Enhanced durability and balanced movement

Left/Right Config

Bi-directional mainshaft installation

Industrial Boom Barrier Gate

TECHNOSPACIO-BOOMBARRIER-850
