Industrial Full Height Turnstiles

TECHNOSPACIO FULL HEIGHT TURNSTILE-300
Overview

The Technospacio Full height turnstile-300 are a frequent choice for simple access control and monitoring where security is not the most important priority. Where complete access-control is needed, making it almost impossible for an unauthorized person to access your site. Waist height turnstiles are built to stop tailgating at the exterior of your facility. While they completely shut down any attempts at tailgating, they are not able to prevent piggybacking. Waist height turnstiles are cost-effective and tend to have a lifespan of 25+ years. We provide models in stainless-steel 304 and 316. They can be powder coated to your preference and can also be motorized. full waterproofed and weatherproofed

High Security Control
Anti-Tailgating
Semi-Auto Mechanism
Controlled Entry Flow
Heavy Duty Build
Outdoor Weatherproof
Access Control Ready
×
Throughput

0

pass/minute

Height

0

mm

Protection

IP54

outdoor

Power Supply AC 220V / 110V, 50/60Hz
Operating Temperature -28°C to 80°C
Operating Humidity 5% – 85%
Working Environment Indoor / Outdoor, IP54 Standard
Rated Power 60W
Flow Rate 25–48 passages/min
Casework Material SUS304 (SUS316 optional)
Mechanism Semi-automatic electromagnetic with hydraulic buffer (full automatic brushless motor optional)
Control System Dry contact
Emergency Alarm Yes

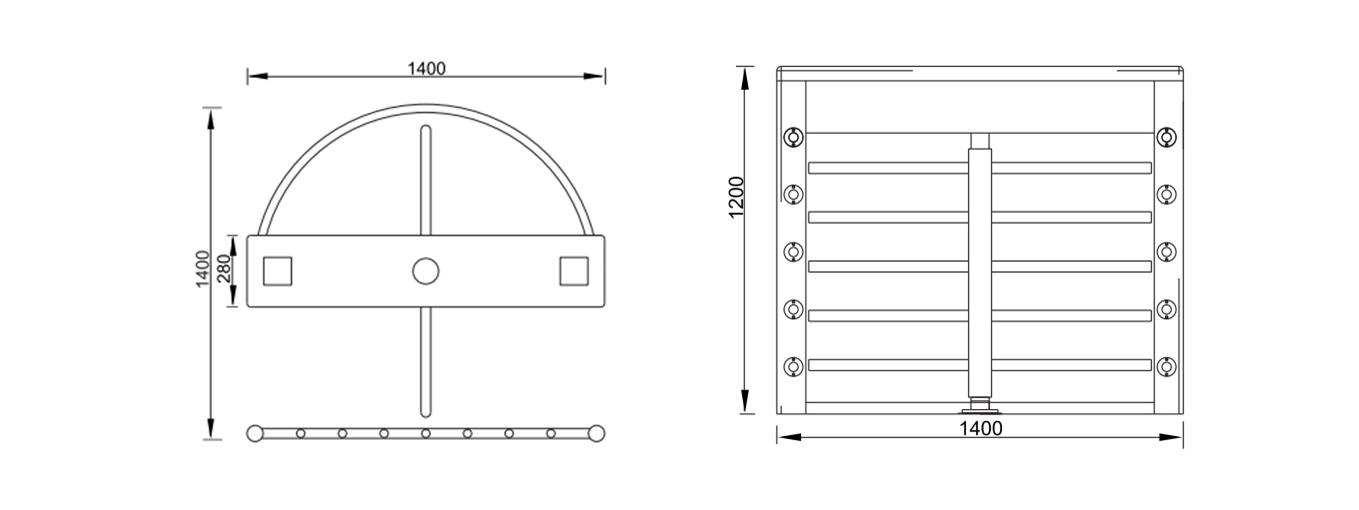

Dimension 1400 × 1200 × 1400 mm + arm 500 mm
Net Weight 130 kg
Material Thickness 1.5 mm
MCBF 5 million (electromagnetic), 8 million (brushless)
Warranty 1 year
Swipe Card

Authorized card access for entry

Iris Recognition

High-security iris authentication

Industrial Gates

Factory & warehouse control

Fingerprint

Biometric fingerprint entry

Face Recognition

AI face authentication entry

Palm Vein

Palm vein recognition access

QR Code

QR / barcode access control

Coin / Ticket

Token or ticket entry systems

Manual Control

Button, wired or remote opening

Download Datasheet

Download PDF
SUS304 Body

Stainless steel cabinet for durability and corrosion resistance

Low Power Consumption

Energy-efficient brushless motor reduces power usage

Long Life Mechanism

High-quality motor and components ensure long service life

Anti-Tailgating

Infrared sensors allow only one person per authorization

Safe Design

Obstacle detection ensures user safety during operation

Easy Integration

Supports RFID, biometric, QR and third-party systems

×
