Industrial Full Height Turnstiles

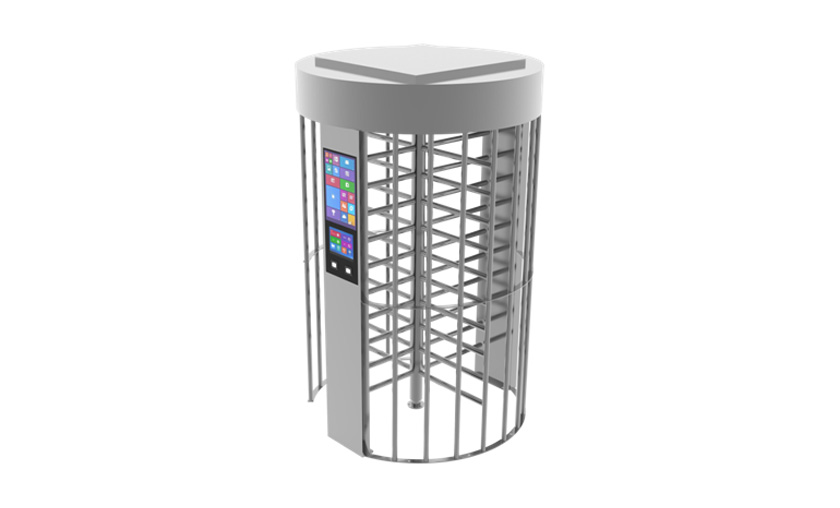

TECHNOSPACIO FULL HEIGHT TURNSTILE-500
Overview

The Technospacio Full height turnstile-500 are floor-to-ceiling turnstiles with mechanical rotating barriers. They operate similarly to a revolving door with the only difference being that they allow access to one person at a time by locking after a single person makes entry into the system. Full height turnstiles are built to stop tailgating at the exterior of your facility. While they completely shut down any attempts at tailgating, they are not able to prevent piggybacking. Full height turnstiles are cost-effective and tend to have a lifespan of 25+ years. We provide models in stainless-steel 304 and 316. They can be powder coated to your preference and can also be motorized. full waterproofed and weatherproofed

High Security Control
Anti-Tailgating
Semi-Auto Mechanism
Controlled Entry Flow
Heavy Duty Build
Outdoor Weatherproof
Access Control Ready
×
Throughput

0

pass/minute

Height

0

mm

Protection

IP54

outdoor

Power Supply AC 220V / 110V, 50/60Hz
Rated Power 60W
Flow Rate 25–48 passages/min
Working Environment Indoor / Outdoor, IP54
Operating Temperature -28°C to 80°C
Operating Humidity 5% – 85%
Casework Material SUS304 (SUS316 optional)
Material Thickness 1.5 mm
Mechanism Semi-auto electromagnetic with hydraulic buffer
Motor Option Full-auto brushless motor optional
Control System Dry contact
Emergency Alarm Yes
MCBF 5M cycles (EM) / 8M cycles (brushless)

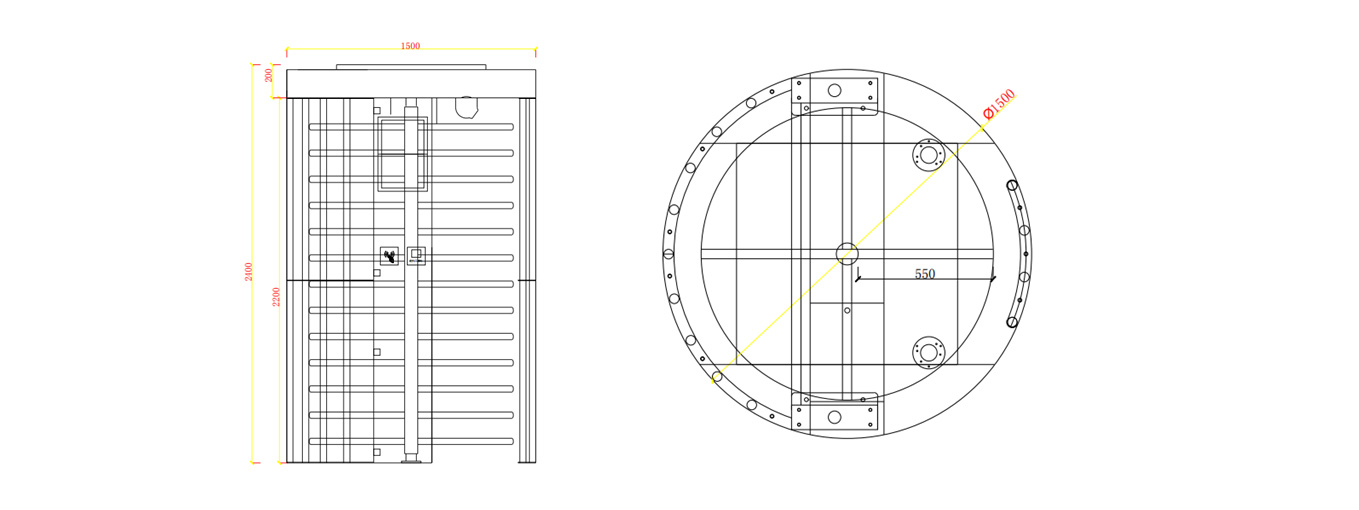

Dimension Ø1500 × 2300 mm + arm 700 mm
Net Weight 180 kg
Warranty 1 year
Swipe Card

Authorized card access for entry

Iris Recognition

High-security iris authentication

Industrial Gates

Factory & warehouse control

Fingerprint

Biometric fingerprint entry

Face Recognition

AI face authentication entry

Palm Vein

Palm vein recognition access

QR Code

QR / barcode access control

Coin / Ticket

Token or ticket entry systems

Manual Control

Button, wired or remote opening

Download Datasheet

Download PDF
SUS304 Body

Stainless steel cabinet for durability and corrosion resistance

Low Power Consumption

Energy-efficient brushless motor reduces power usage

Long Life Mechanism

High-quality motor and components ensure long service life

Anti-Tailgating

Infrared sensors allow only one person per authorization

Safe Design

Obstacle detection ensures user safety during operation

Easy Integration

Supports RFID, biometric, QR and third-party systems

×
